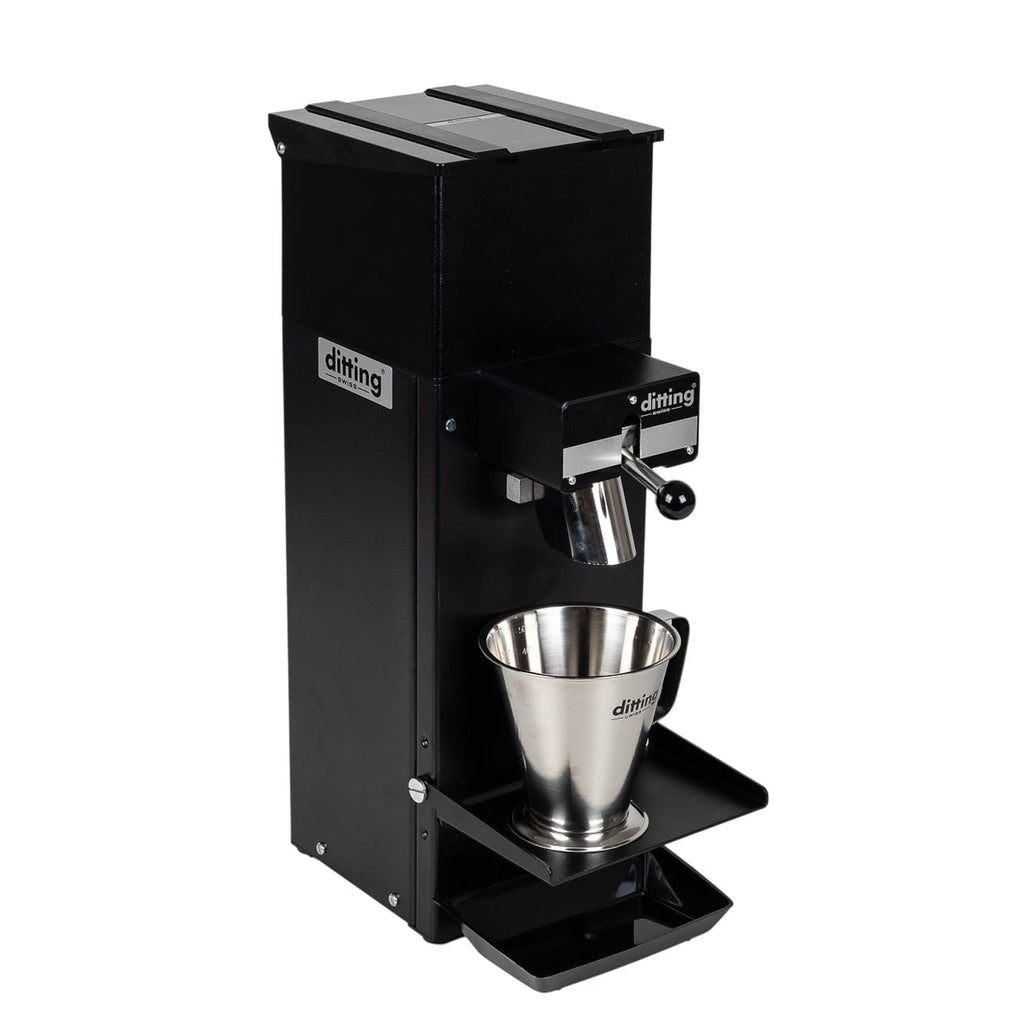

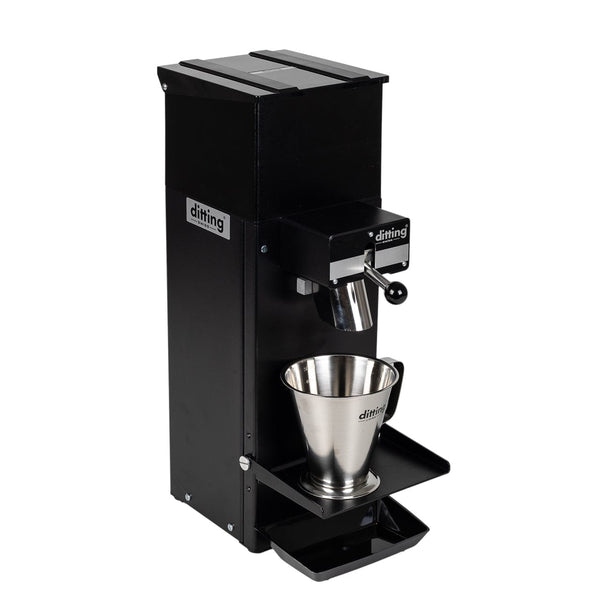

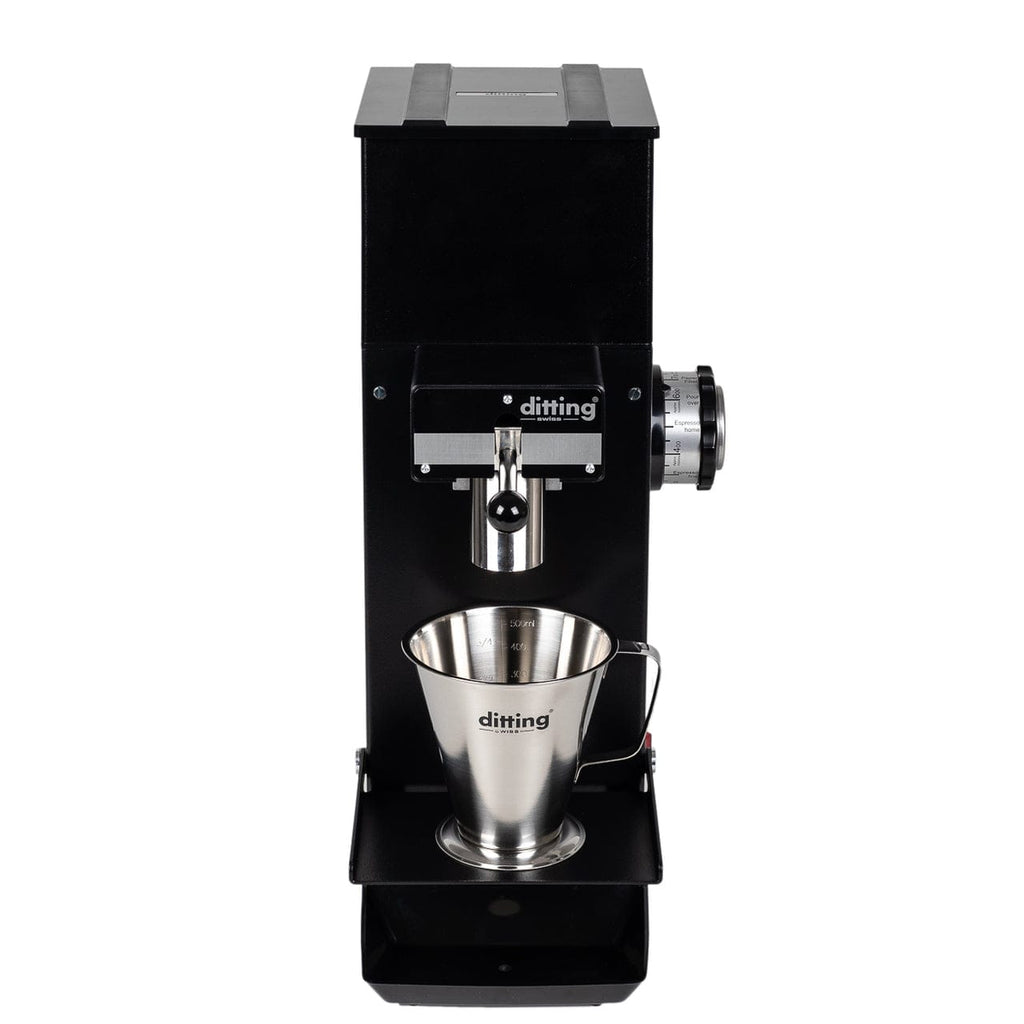

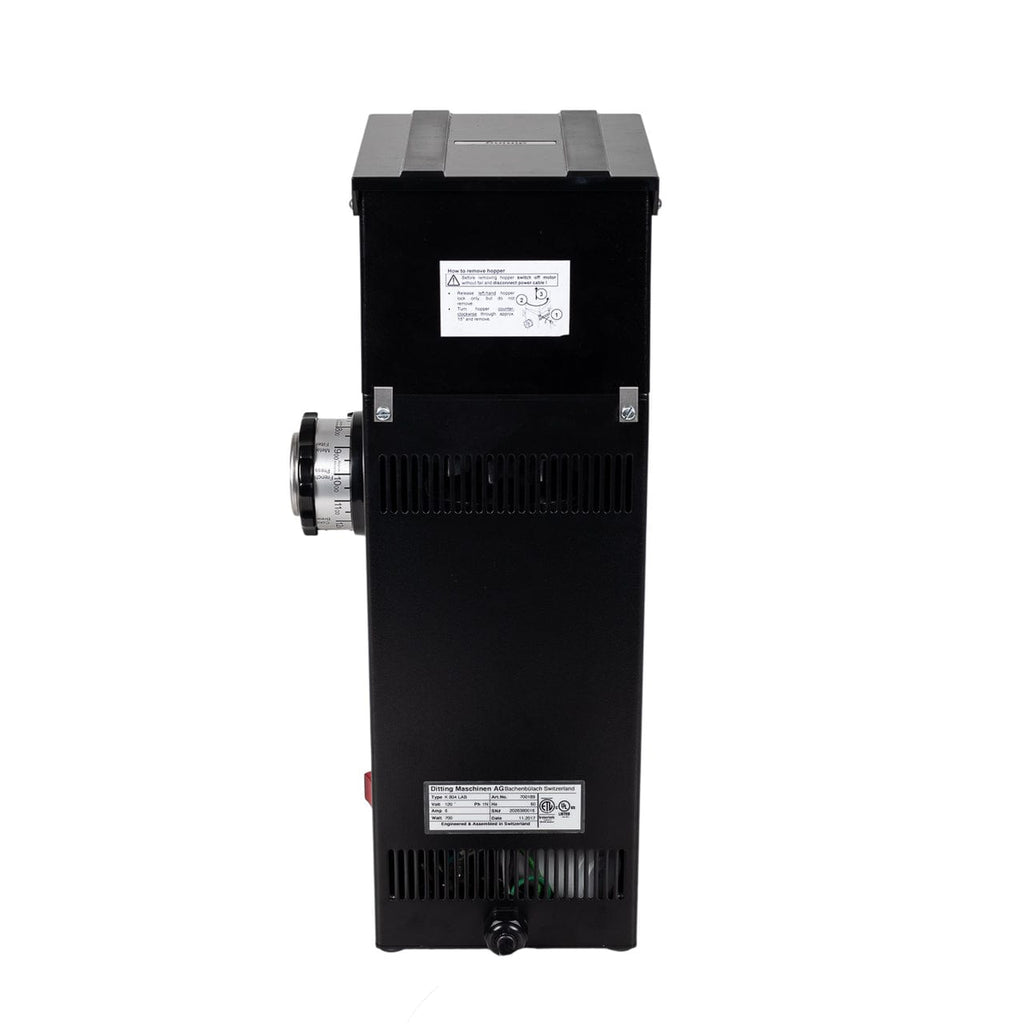

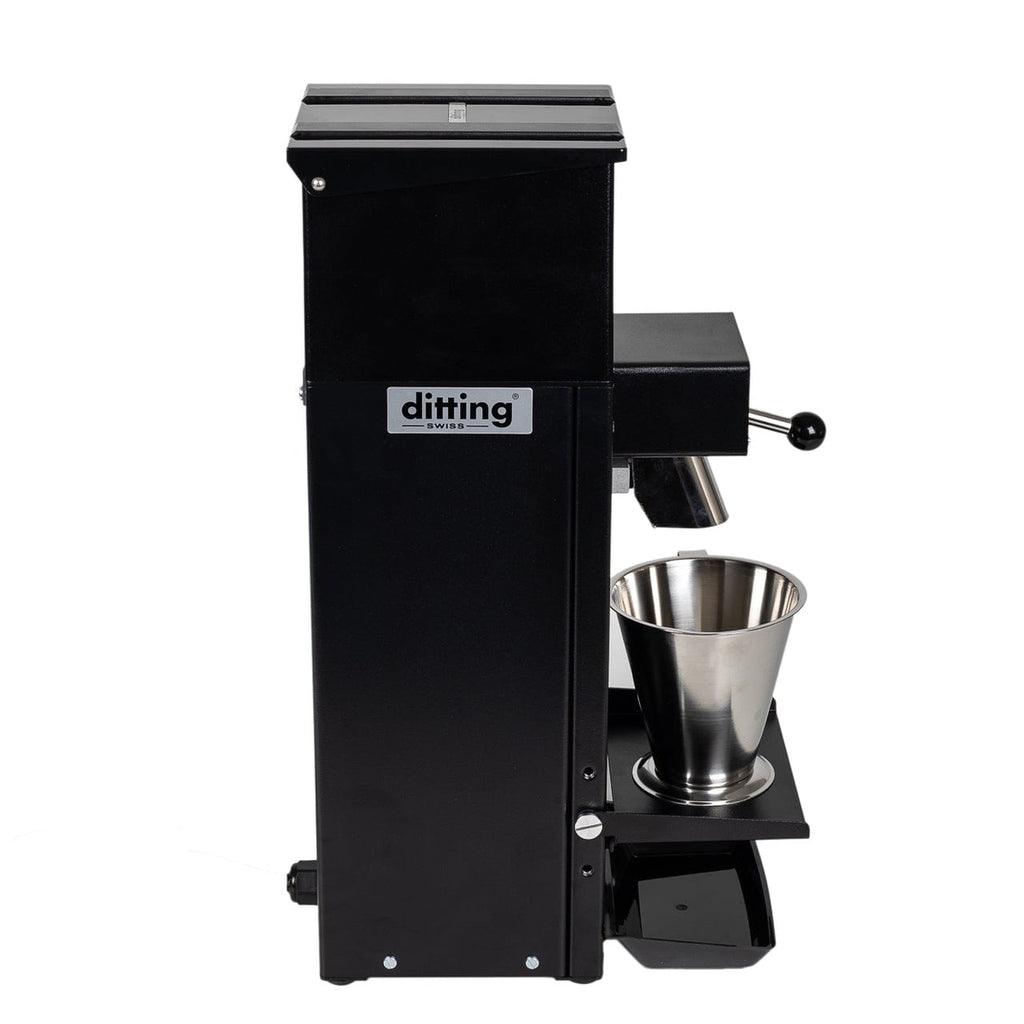

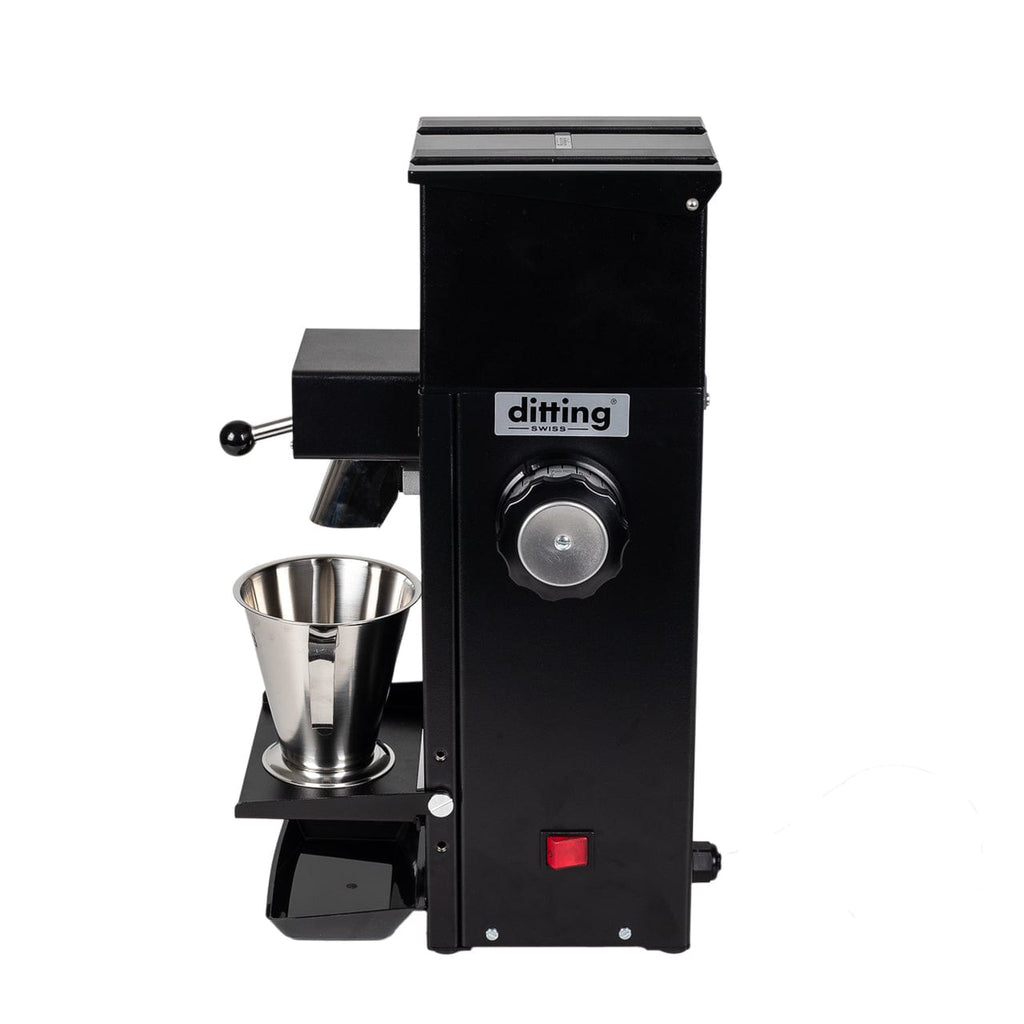

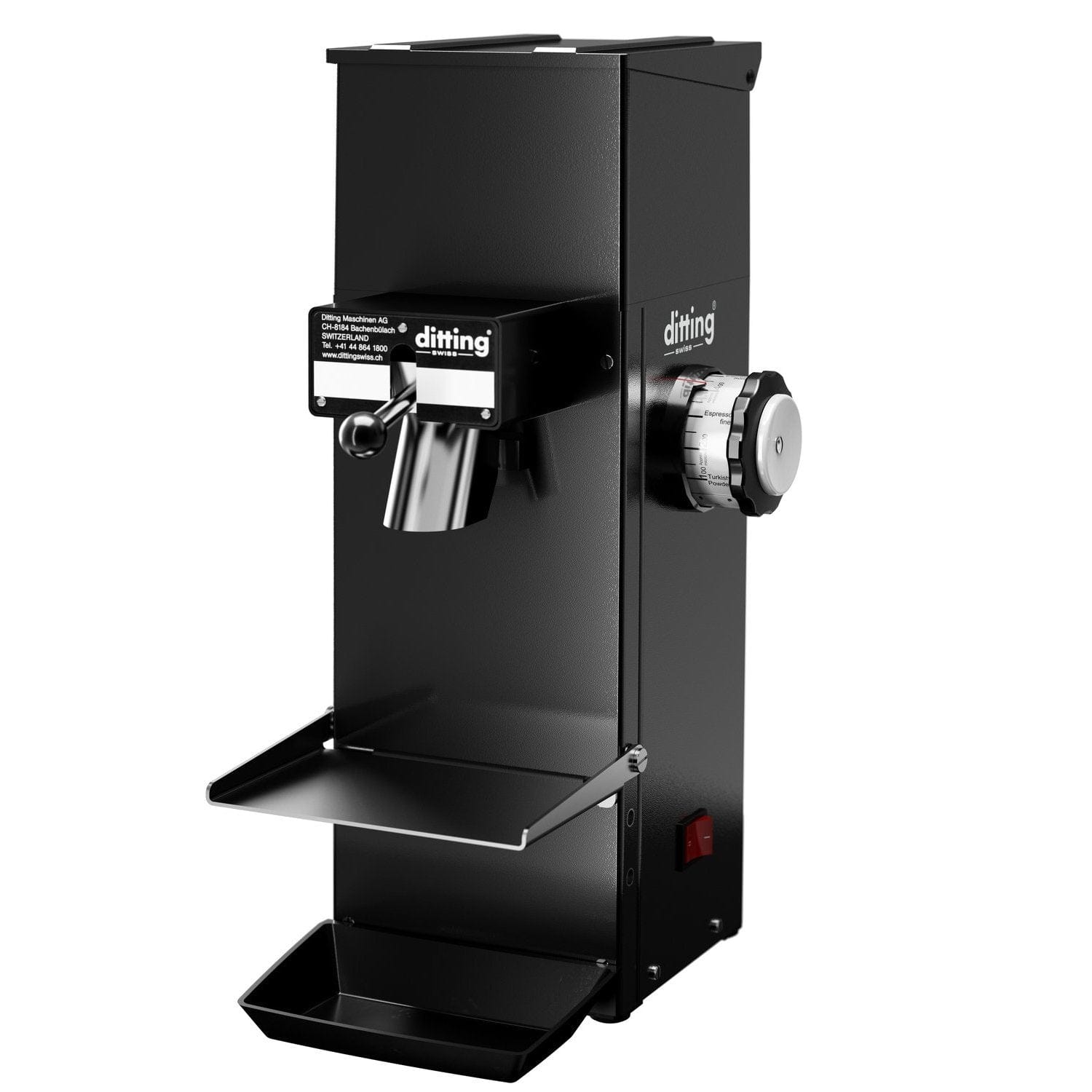

Ditting K804 Lab Coffee Grinder

The Ditting K804 Lab Coffee Grinder is discontinued and has been replaced by the Ditting 807 Lab Sweet Coffee Grinder, which is now available!

The 804 Lab combines the approved grinding technology of the KF/ KR 804 series with functionalities specially designed for laboratory applications. The grinder facilitates single portion grinding with almost no residues to achieve the highest precision.

• 80mm upgraded sweet burrs
• Grinds up to 30lbs. per day
• Minimal retention of coffee residues left in the spout with manual knocker
• Adjustable position of the tray for different bin sizes
• Wear-resistant precision grinding discs
• Preservation of coffee’s unique aroma thanks to uniform, gentle and cool grinding
• Stepless grind adjustment with extended range
• High grind speed at all grind adjustment steps
• Easy to maintain and clean
• The K804 Lab is the Ditting replacement for the KF804
• Burr Options: Special Steel burr (standard) OR Lab Sweet burr (upgrade)
• Part No. K 804 Lab, K804 Lab, 804 Lab

• Voltage: 110v, 60Hz, 1ph
• Average grinding capacity: 1 lb/min*
• Hopper capacity: 1.1 lbs.
• Motor: .65 kW
• Motor current: 6 amps
• Grinding disc size: 80mm
• Average disc life: 15,000 lbs.
• Weight: 55 lbs.
• 9.5"W x 11"D x 26"H
• UL, cUL, ETL Approved, NSF-8 Standards
• A Magnet for Hopper: Yes
• Manual Bag Holding Device: Yes
• Tapper: Yes
• Vibrator Plate: No, Flip-Up with Adjustable Tray
• Color: Black
• Safety/Overload: Yes
• Modular Design: Yes

• For new retail and light-industrial coffee grinders (to include the 804, 1203, 1403, and 1800 series models) purchased for use in the United States, the limited warranty includes ONE year on all-electric components.
• Warranty is ONLY valid for grinders purchased in the United States to be used in the United States. If a grinder is exported outside of the U.S, the warranty is no longer valid.

Product Brochure
