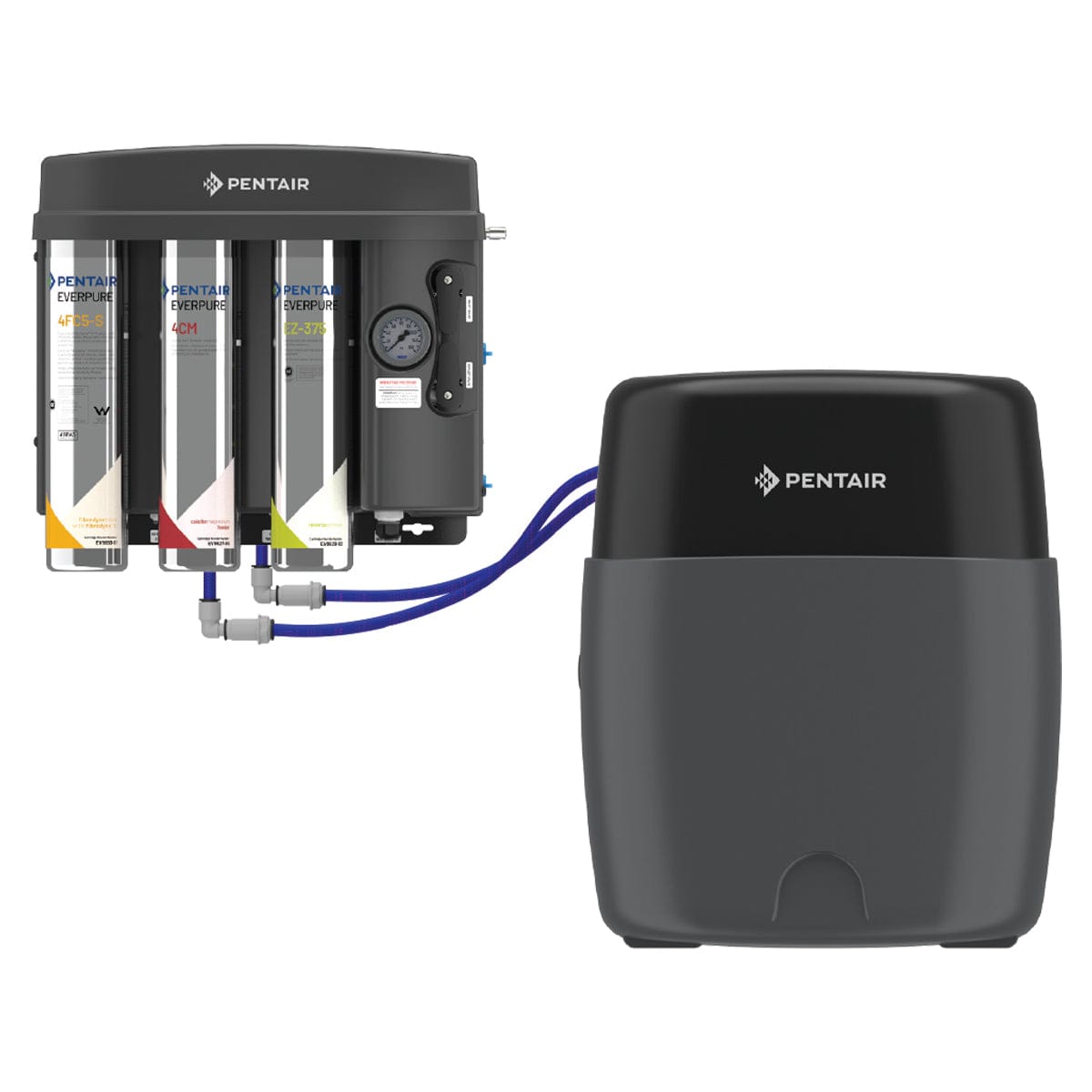

Everpure EZ-RO 200 Reverse Osmosis RO System

The Everpure EZ-RO 200 Reverse Osmosis System meets espresso, coffee, and tea equipment and customer water quality standards, while significantly reducing scale and corrosion problems due to high TDS, water hardness, and chlorides in your water. A precision stainless steel blend valve and a built-in TDS meter allow customized TDS for optimum extraction and taste profile for espresso, coffee and tea. The EZ-RO System includes a Proprietary Fibredyne II filtration media which effectively inhibits growth of bacteria on the filter media that can decrease the product’s life. This system also helps to reduce sediment and chlorine to help protect the RO membrane.

• 4CM cartridge provides calcium and magnesium for improved extraction
• Non-electric design operates on available water pressure
• Sealed hydro-pneumatic storage tank provides capacity and pressurized water to downstream equipment
• Pressure gauge allows monitoring of RO inlet pressure and pre-filter conditions
• Built-in bypass, sample port and flush valves speed up installation and cartridge replacement
• Compact design allows installation under counters and in tight spaces
• High flow 1/2" OD tubing optimized water line to equipment
• Installation kit comes complete with tubing, fittings, and mounting hardware
• High efficiency RO membrane saves up to two times more water than standard RO membranes

Processor Dimensions: 16.6”(H) x 18”(W) x 8”(D)

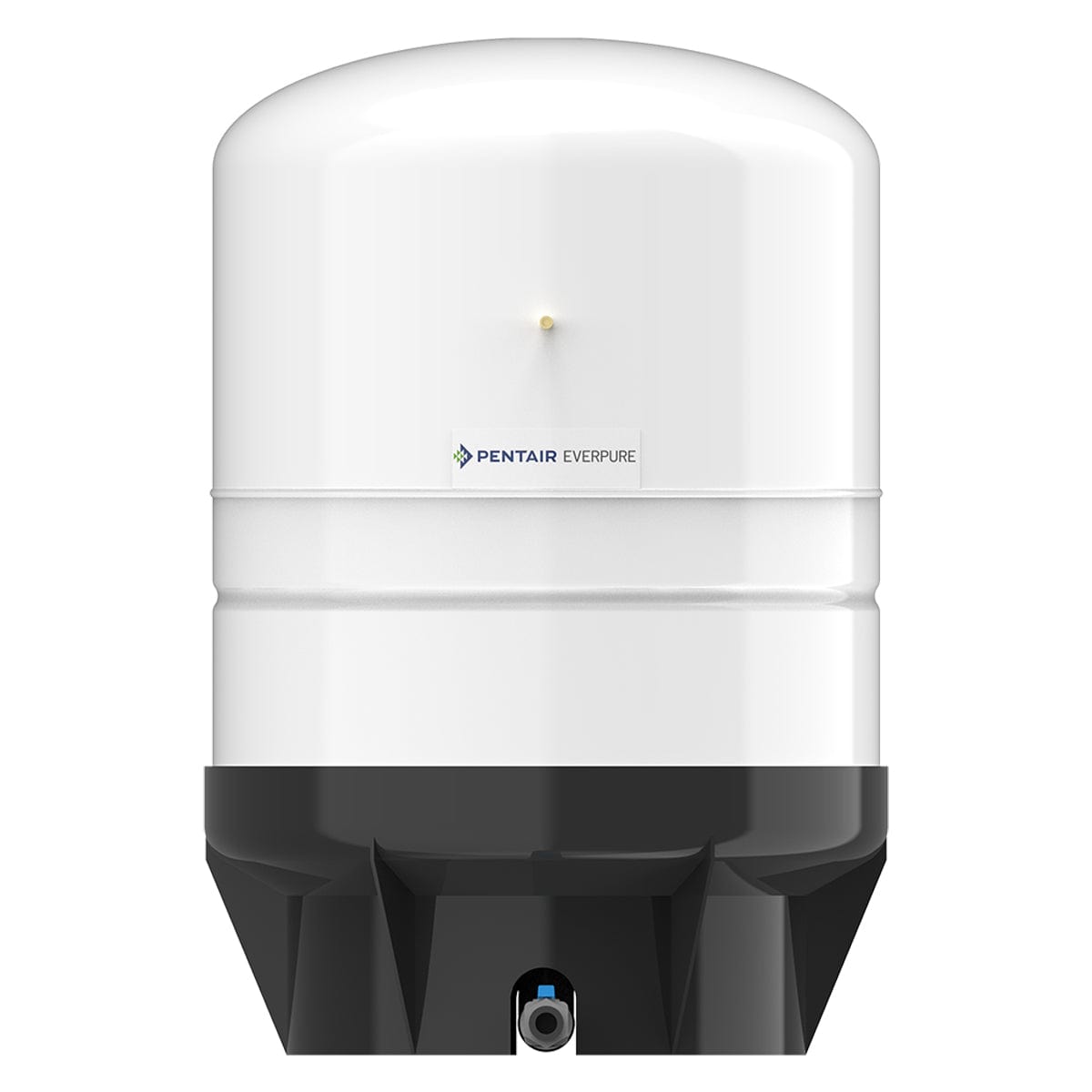

Tank Dimensions:

• 5 Gallon: 20.3”(H) x 12.4”(DIA)
• 10 Gallon: 23.2”(H) x 15.6”(DIA)
• 16 Gallon: 30.4”(H) x 15.6”(DIA)

Total Weight:

• 5 Gallon: 40.5 lbs
• 10 Gallon: 48.5
• 16 Gallon: 57.5

Inlet Connection: 3/8” push-to-connect

Outlet Connection: 1/2” OD push-to-connect

Pressure Requirements: 50 - 100 psi (3.5 - 6.9 bar)

Water Temperature: 40 - 100ºF (4 - 38ºC)

Daily Production Rate: Up to 200 gal/day

Replacement Filters:

• Everpure 4CM Remineralization Cartridge
• Everpure 4FC5-S Carbon & Sediment Filter
• Everpure EZ-200 Replacement Membrane Cartridge

All new Everpure products come with a 90-day parts warranty.
