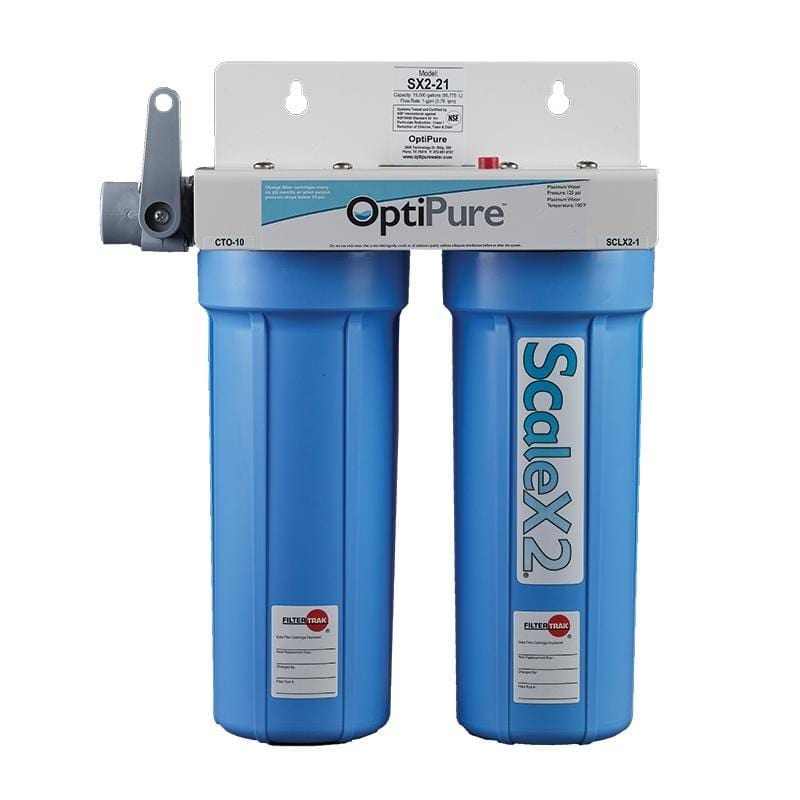

OptiPure SX2-21 Dual 10" ScaleX2® Water Filter System

The OptiPure SX2-21 is a dual-housing water treatment system with drop-in 10” cartridges that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 1.5 GPM for 15,000-gallons. This system includes ScaleX2, a chemical-free scale inhibition technology that utilizes Template-Induced Crystallization to effectively inhibit the formation of calcium carbonate scale.

• Applications: Steam & Combi Ovens – Boilers or steam generators up to 1.5 GPM – Not recommended for flash type (boiler less) combi ovens, Coffee Brewers – Single or combination applications up to 1.5 GPM.
• ScaleX2® protects boilers, steam generators, and coffee equipment against the formation and accumulation of scale.
• Reduces maintenance frequency and cost, and extends equipment life.
• Gradient-density sediment filtration protects against dirt, rust, and other debris down to 0.5 microns
• High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine
• A sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
• Inlet shut-off and depressurization valves make filter replacement quick and simple.
• Minimizes waste by only replacing the drop-in cartridge and reusing filter sump.
• NSF Certified
• Part Number: SX2-21 160-00350

• Dimensions: 14.6”(H) x 11.3”(W) x 5.8”(D)
• Weight: 12 lbs.
• Service Flow Rate: 1.5 GPM
• Sediment Reduction: 0.5 microns
• Connection - Inlet & Outlet: 1/2” FNPT
• Operating Pressure Range: 10 - 125 PSI (0.7 - 8.6 bar)
• Water Temperature Range: 35 - 100ºF (2 - 38ºC)

Replacement Cartridges

• 252-20110 – CTO-10 (1 required/sold separately)
• 252-60205 – SCLX2-1 (1 required/sold separately)
• 252-60110 – SX21RK (1 required/sold separately)

All new OptiPure products come with a 90-day parts warranty.
