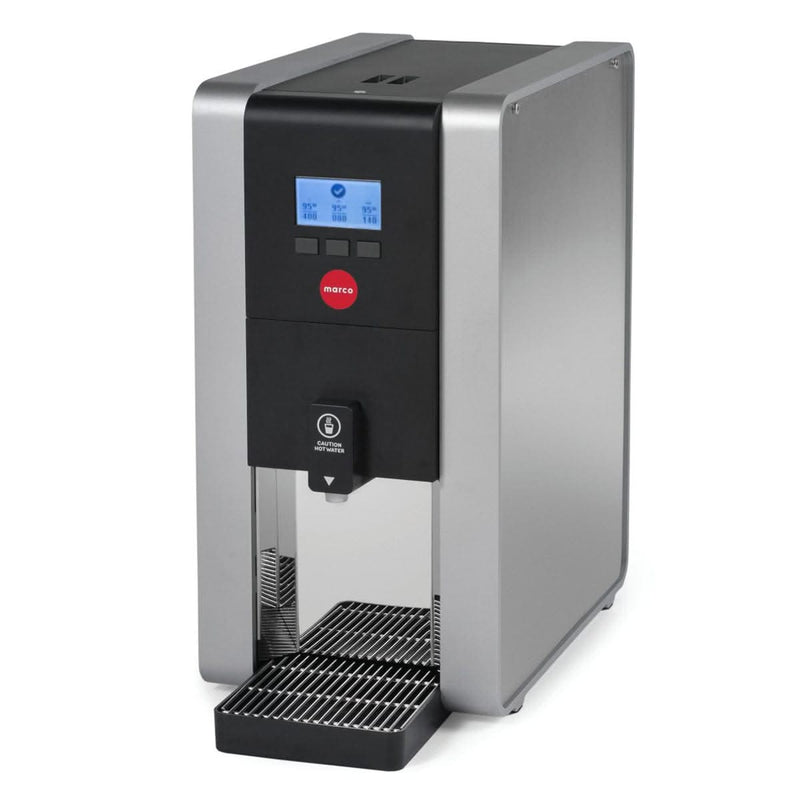

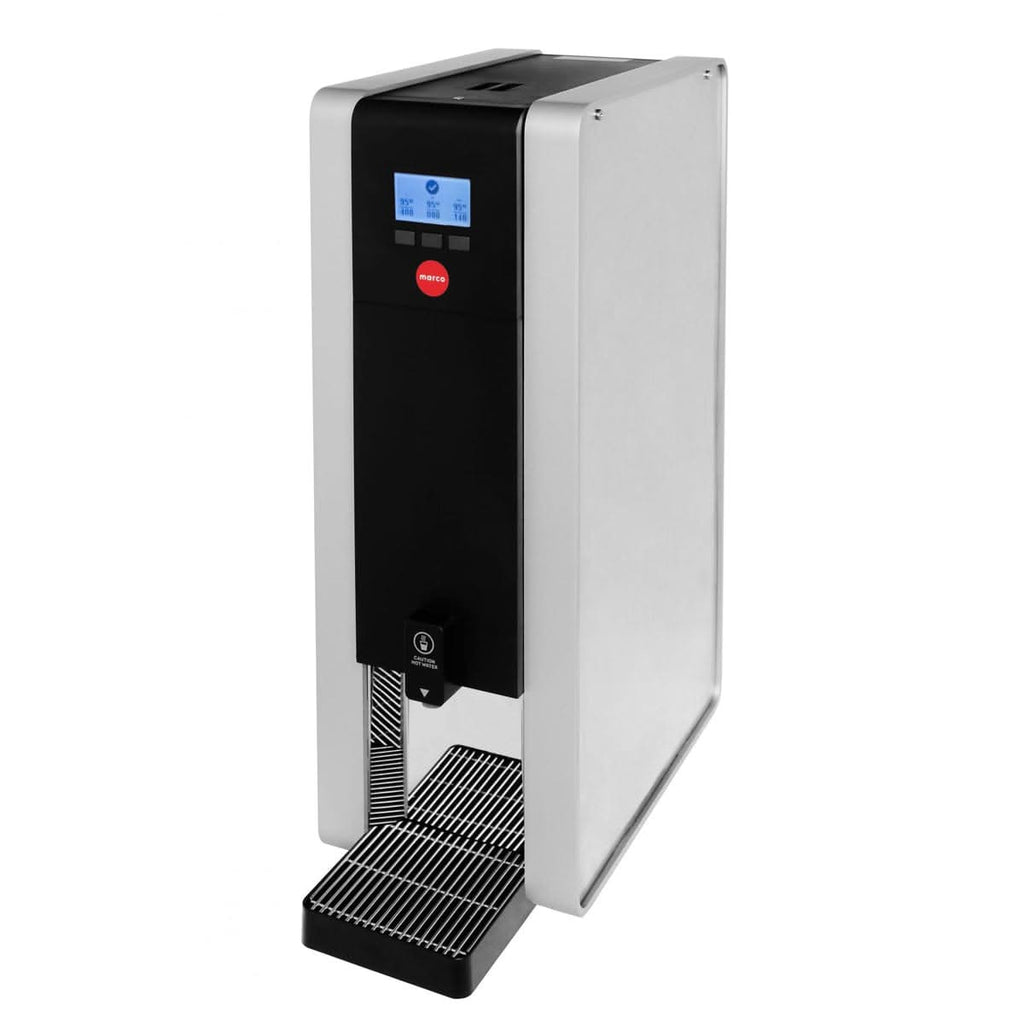

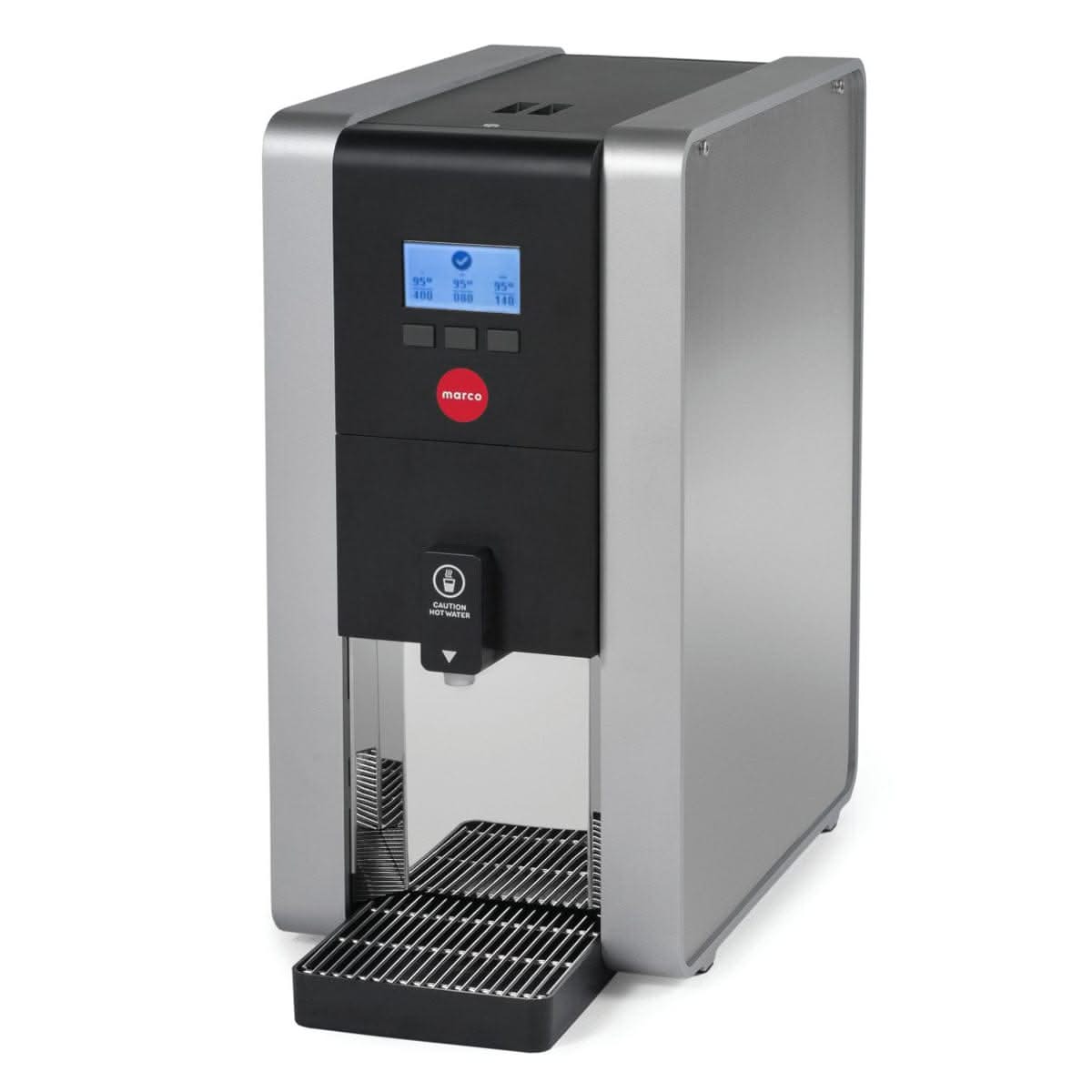

Marco MIX PB3 / PB8 Countertop Hot Water Boiler/Dispenser

The Marco MIX PB3 and PB8 countertop boilers are excellent solutions for any high-volume commercial environment that requires hot water at the push of a button. Capable of delivering 7.5 gallons (156 cups) of hot water per hour, the MIX PB boilers can be programmed to dispense water at three different temperatures and volumes. With vacuum-insulated tanks, the PB3 and PB8 boilers maintain consistent temperatures, making them the perfect choice for any application where quick, hot water is needed.

• Store up to 3 temperature presets
• Programmable volume dispensing
• Vacuum insulated energy efficient boiler
• Autofill/plumbed
• 0.8 or 2.1-gallon options
• Up to 70% more energy-efficient
• Removable drip tray
• 7.5 gallons output per hour
• 156 cups per hour

• Dimensions (PB3):
• 16.5"(H) x 8.5"(W) x 17.5"(D)
• Dimensions (PB8):
• 23"(H) x 8.5"(W) x 16.5"(D)
• Power @ 110V / @ 230V: 1.4kW / 2.8kW
• Plug type (PB3 / PB8): 5-15P / L6-20P
• Tap to tray distance: 5"
• Immediate draw-off (PB3 / PB8) 0.8 gallons / 2.1 gallons
• Plumbing requirements: 3/8" compression or John Guest

• Marco PB3 or PB8 Boiler/Dispenser
• Drip Tray
• User Manual

All new machines include a 24-month parts warranty.

Installation Manual

Service Manual

Spec Sheet

How to Set Temperatures
