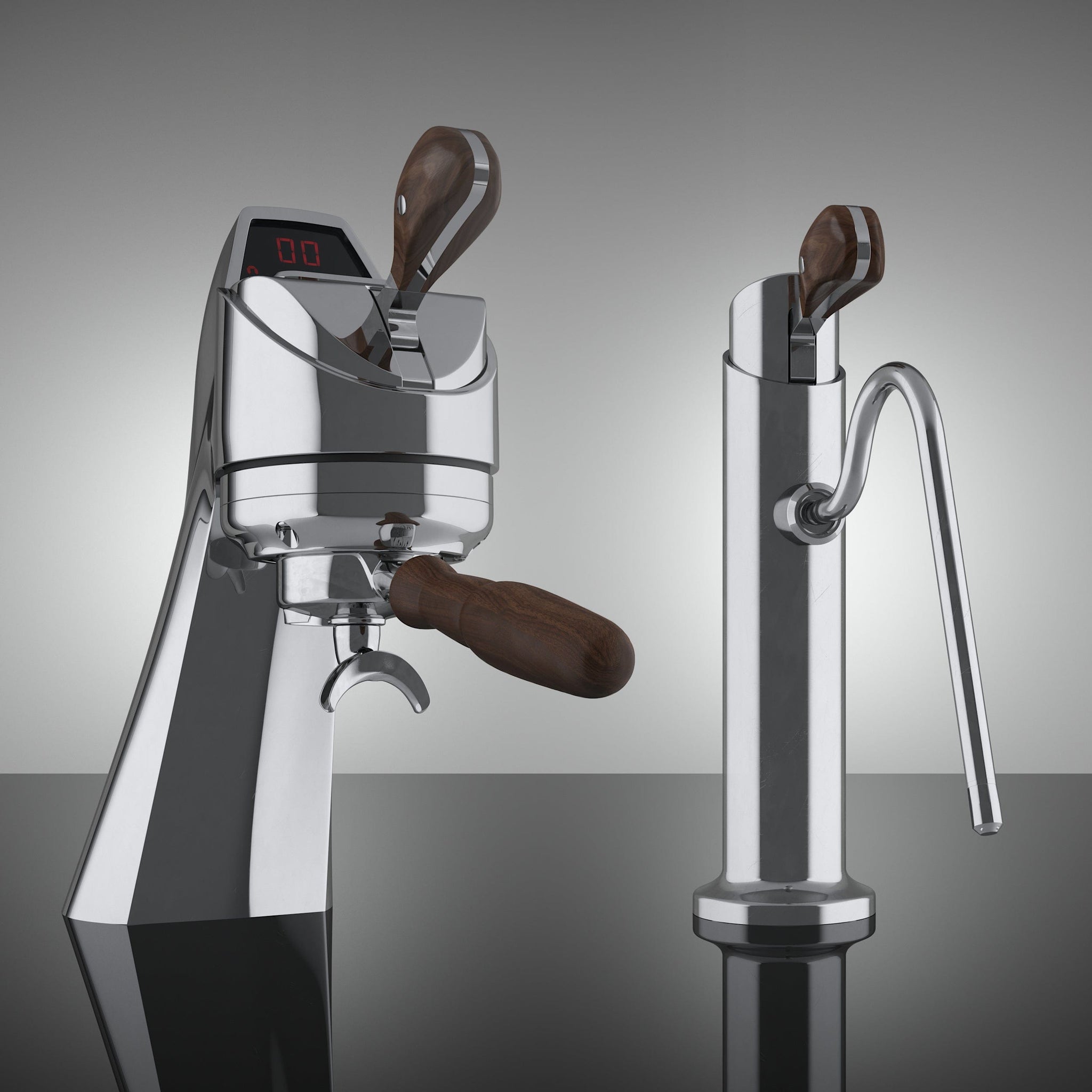

Modbar Espresso AV & Steam Package

The Modbar Espresso AV (auto-volumetric) is the culmination of years of collaborative research and development between Modbar and La Marzocco. With features pulled directly from the Line PB, the Espresso AV comes with the same level of reliability, performance and temperature stability that made the Linea PB an industry icon.

The Modbar Steam delivers a minimal, modern aesthetic coupled with power and control. Recreate a traditional espresso machine with two Steam systems next to your Modbar Espresso, or set up distinct service areas to suit your workflow. Give your customers a full view of their drink being prepared, from espresso pull to latte art.

Modbar Espresso AV Features

• Store 25+ pour-over profiles
• Two active profiles at a time
• Automatic and manual brewing modes
• Built-in flow control valve
• Volumetric and time based dosing
• Holder ring and two spray tips included
• Unique “teaching” mode; perform your pour by hand and the system memorizes and stores it for you
• Flexible hose and wand
• Two spray patterns
• Lab mount system
• Chromed tap

Modbar Steam Features

• Double-walled, pro-touch wand
• Chromed tap
• Ergonomic handle designed to match Espresso AV
• Custom handle finishes walnut (standard) or maple
• Omnidirectional ball fitting
• Minimal purge required with no steam valve rebuilds
• Linea-style porthole boiler sight glass
• Simple on/off switch controlled by solenoid in the module
• Right-hand side connections for easy service access

Espresso AV Technical Details

Dimensions:

• Tap: 7”(W) x 17.5”(H) x 9”(D)
• Module: 16”(W) x 5.5”(H) x 14”(D)

Weight:

• Tap: 12 lbs
• Module: 35 lbs

Module Capacity: 1.2L (Dual Boiler)

Volts: 208V - 240V

Amps: 13 (ETL) / 11 (CE)

Element Wattage: 3000

Frequency: 50/60hz

Certifications: ETL, CE

Steam Technical Details

Dimensions:

• Tap: 3.5”(W) x 12.5”(H) x 11.25”(D)
• Module: 17”(W) x 8.5”(H) x 15”(D)

Weight:

• Tap: 7.7 lbs
• Module: 40 lbs

Module Capacity: 4.6L (Dual Boiler)

Volts: 208V - 240V

Amps: 14.4 (ETL) / 13 (CE)

Element Wattage: 3310 (ETL) / 2705 (CE)

Frequency: 50/60hz

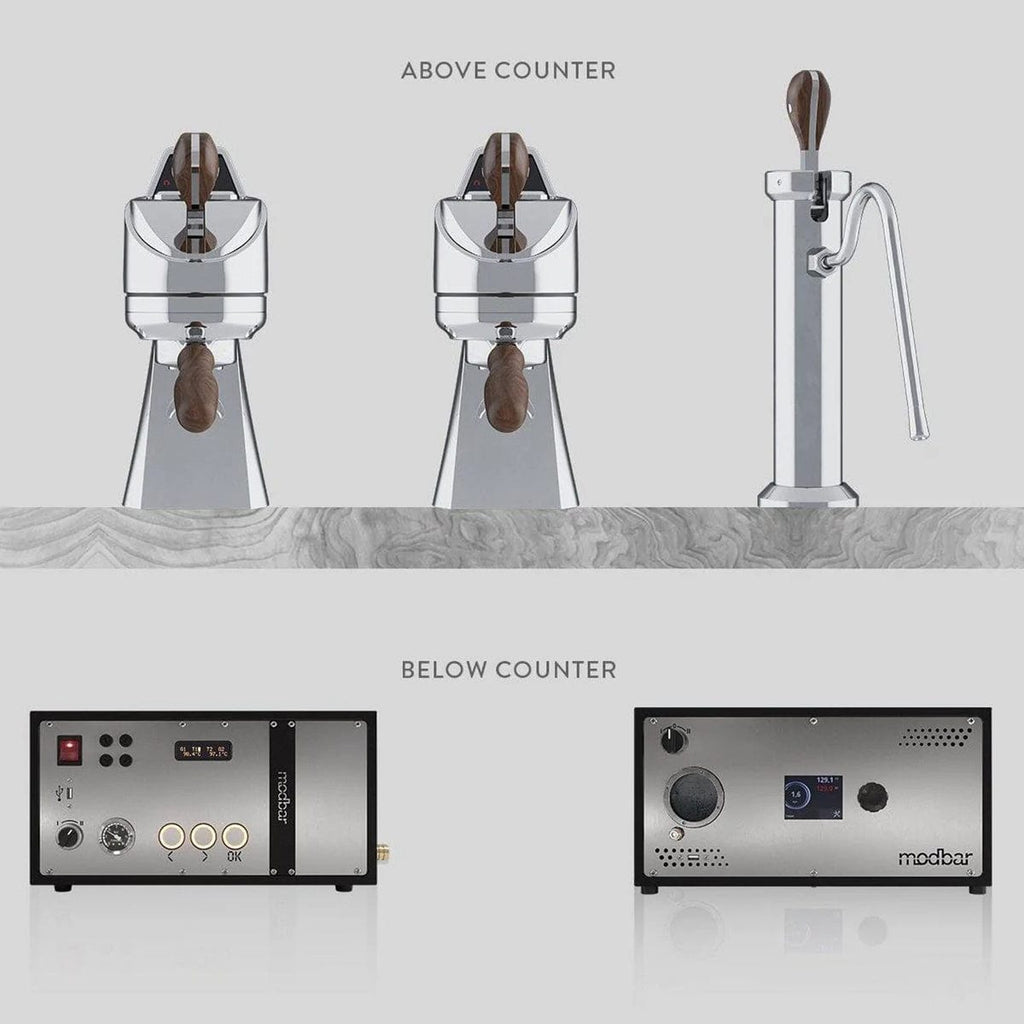

• Modbar Espresso AV Above-Counter Tap (2)
• Modbar Espresso AV Below-Counter Module
• Modbar Steam Above-Counter Tap (2)
• Modbar Steam Below-Counter Module
• Steam Tips
• Drip Trays

Includes a standard 13 months parts-only warranty from the original date of shipment.

Espresso AV Documents

• Installation Guide
• Product Brochure

Steam Documents

• Installation Guide
• Product Brochure
