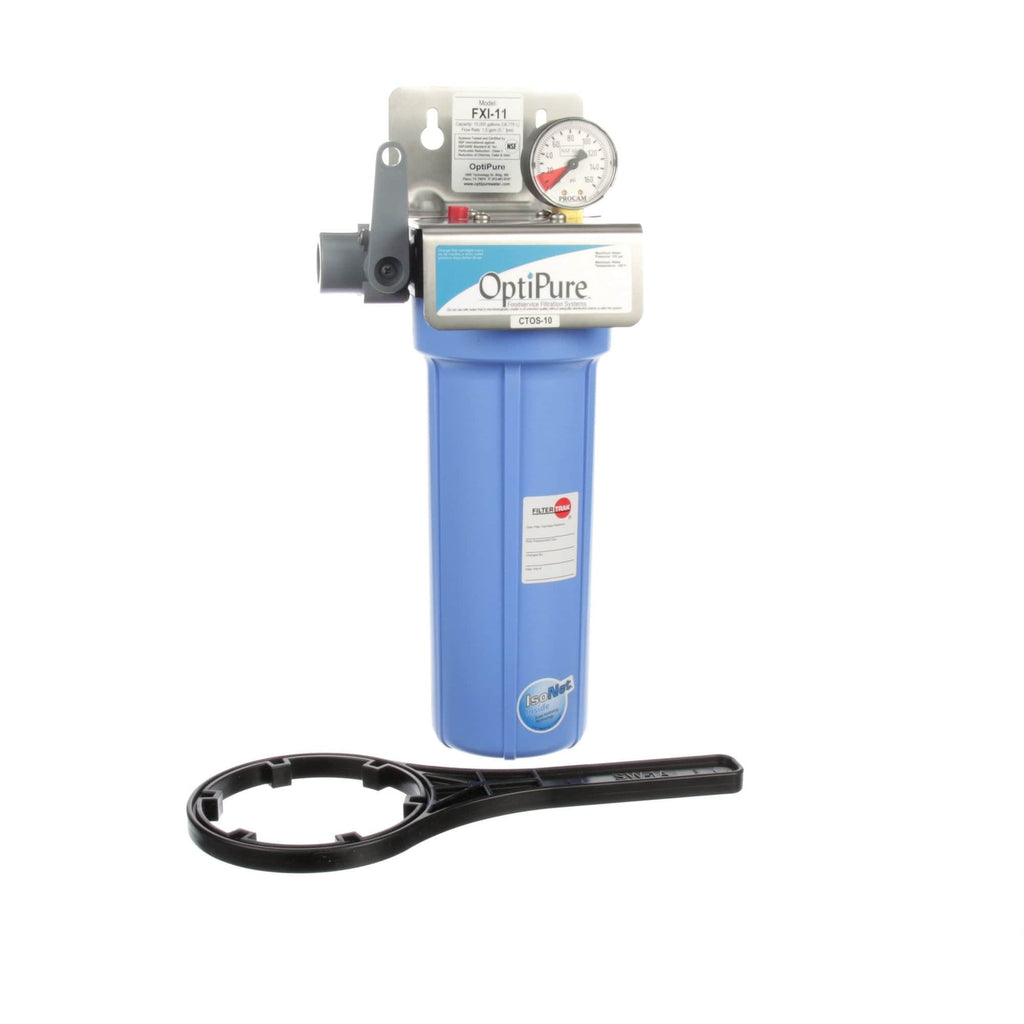

OptiPure FXI-11 10" Carbon Filter System + Scale Inhibitor

The OptiPure FXI-11 is a single-housing water treatment system with a drop-in 10” cartridge that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 1.5 GPM for 15,000-gallons. The system includes IsoNet, OptiPure’s patented scale-inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

• Applications: Ice – Cubers up to 800 lbs. and Flakers up to 1,000 lbs, Coffee – Single to Multiple Brewers up to 1.5 GPM, Steam & Combi Ovens
• IsoNet, OptiPure’s patented scale-inhibiting technology helps protect equipment against scale and corrosion for the rated capacity of the system
• Reduces maintenance frequency and cost, and extends equipment life
• Gradient-density sediment filtration protects against dirt, rust, and other debris down to 0.5-microns
• High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine
• A sturdy mounting bracket and full-flow inlet shut-off valve simplifies installation
• Built-in pressure gauge allows visual monitoring of when filters need to be changed
• Inlet shut-off and depressurization valves make filter replacement quick and simple
• Minimizes waste by only replacing the drop-in cartridge and reusing filter sump
• NSF Certified
• Part Number: FXI-11 160-50105

• Dimensions: 14.6”(H) x 6.4”(W) x 5.1”(D)
• Weight: 6 lbs.
• Service Flow Rate: 1.5 GPM
• Performance Capacity: 15,000 Gallons
• Sediment Reduction: 0.5 microns
• Connection - Inlet & Outlet: 1/2” FNPT
• Operating Pressure Range: 10 - 125 PSI (0.7 - 8.6 bar)
• Water Temperature Range: 35 - 100ºF (2 - 38ºC)

Replacement Cartridges

• 252-20210 – CTOS-10 (1 required)

All new OptiPure products come with a 90-day parts warranty.
