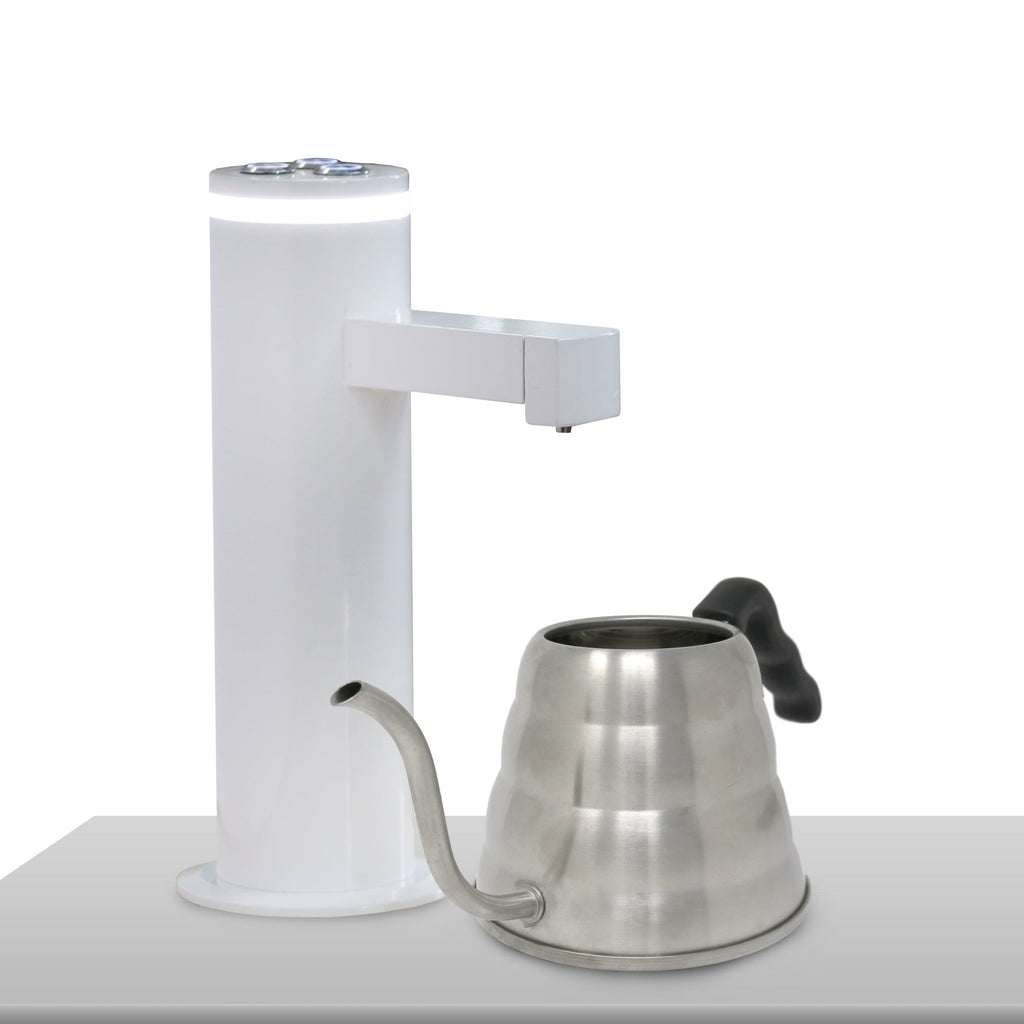

Wilbur Curtis Corinth Single-Head Hot Water Dispenser

The Wilbur Curtis Corinth Single-Head Hot Water Dispenser is designed with a minimal footprint on the countertop to allow you to highlight your coffee and tea service. Featuring an under-counter heating system, Corinth’s G3 digital controls accurately maintain set temperature from 170° to 208°F. At the heart of the system, the Corinth includes a unique internal pre-heat exchanger coil to ensure accurate temperature hot water the moment it’s dispensed with no lag time. Corinth’s contemporary tower incorporates three dispense buttons. Each is programmable from continuous manual flow to on-touch 32 oz. dispensing.

• Unique shape and size add visual interest to any countertop

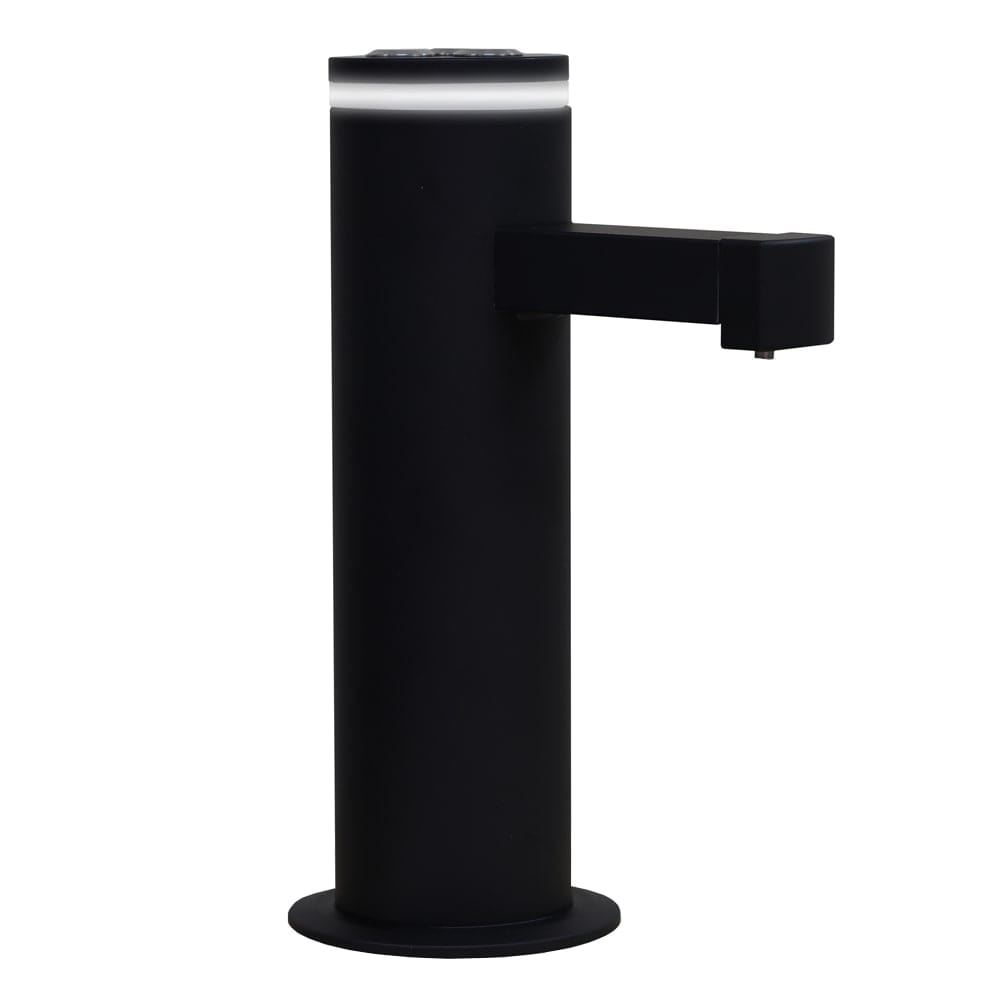

• Available in Sky White or Lustrous Black
• Three Programmable Buttons
• Factory pre-set to two portion control, one manual dispense
• User programmable from manual flow to 32 oz. dispensing
• Remote, Under-Counter Heating System
• Features Curtis G3 digital controls to accurately maintain set temperature from 170° to 208°F. (Factory pre-set at 208°F)
• Innovative Internal Pre-Heat Exchanger Coil ensures accurate temperature hot water the moment it’s dispensed, eliminates lag time

• Dimensions: 24.5”(H) x 11”(W) x 20.5”(D)
• Weight: 81 lbs
• Tank Volume: 5.0 Gallons
• Minimum Flow Rate: 2.0 GPM
• Water Pressure: 20 - 90 PSI
• Voltage: 120 / 220
• Wattage: 1500 / 5000
• Amps: 12.5 / 22.7
• Phase: 1
• Water Inlet Size: 3/8” Flare

All new Wilbur Curtis products come with a 2-year parts & labor warranty and a 3-year circuit board warranty.
